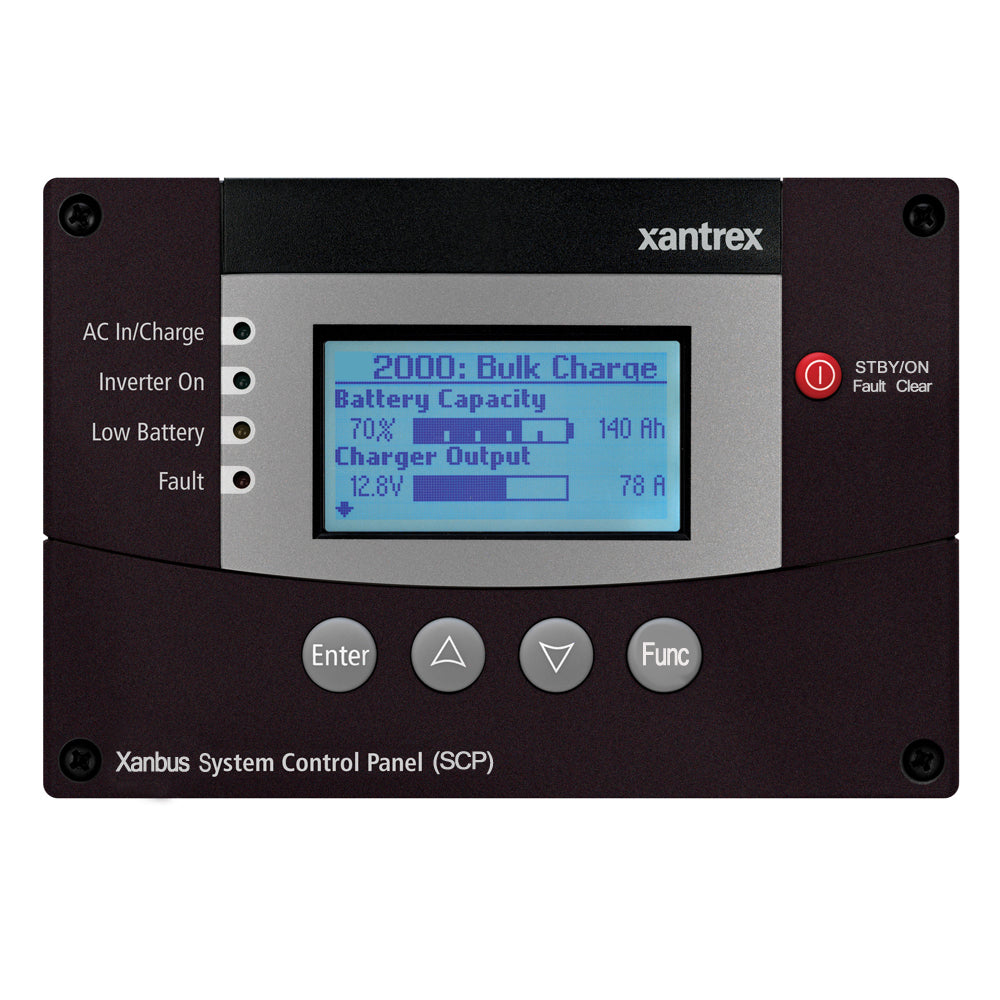

Xantrex 809-0921 Xanbus System Control Panel for Freedom SW

Control and diagnose a compatible Xantrex Freedom SW inverter/charger network from one readable panel. The Xanbus System Control Panel 809-0921 provides system configuration, device status, and diagnostic information through a backlit graphical display and large tactile controls.

System functions

• Graphical 128 × 64-pixel backlit LCD.
• Plain-language status and diagnostic messages.
• Controls multiple compatible devices on a Xanbus network.
• Connects with standard network-style cabling specified for Xanbus equipment.
• Flash memory supports manufacturer software updates.
• Meets UL 458 requirements stated by Xantrex.

Verified compatibility

Before ordering

Confirm the exact Freedom SW model, generation, network topology, cable requirements, mounting location, and whether current firmware supports every connected device. This panel is a control interface; it does not increase inverter output or battery-charging capacity.

Documentation

• Xanbus SCP quick guide (PDF)
• Xanbus SCP owner’s manual (PDF)

California Proposition 65 warning: This product can expose you to DINP, known to the State of California to cause cancer, and DIDP, known to cause reproductive harm. Visit P65Warnings.ca.gov.
